Automatic Servo Nut Tapping Machine M1–M12 | OEM Manufacturer
OEM & Custom Solutions for Europe and Southeast Asia

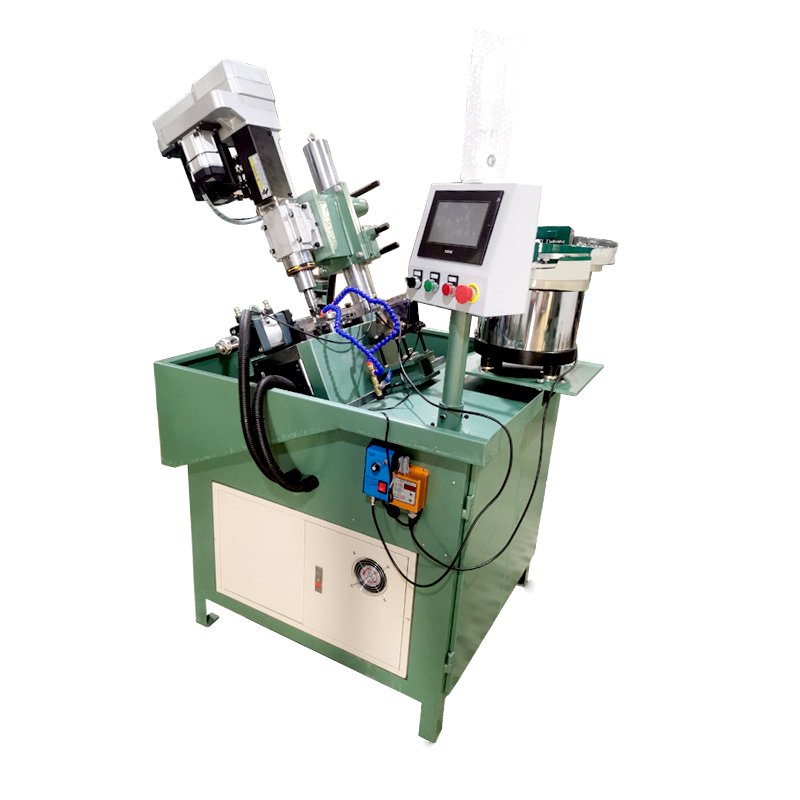

Designed for high‑precision and stable internal threading, our fully automatic single‑spindle servo nut tapping machine is ideal for tapping M1–M12 nuts in mass production. With precise servo torque control and reliable automation, this machine ensures consistent thread quality, high efficiency, and long‑term operational stability for industrial manufacturers.

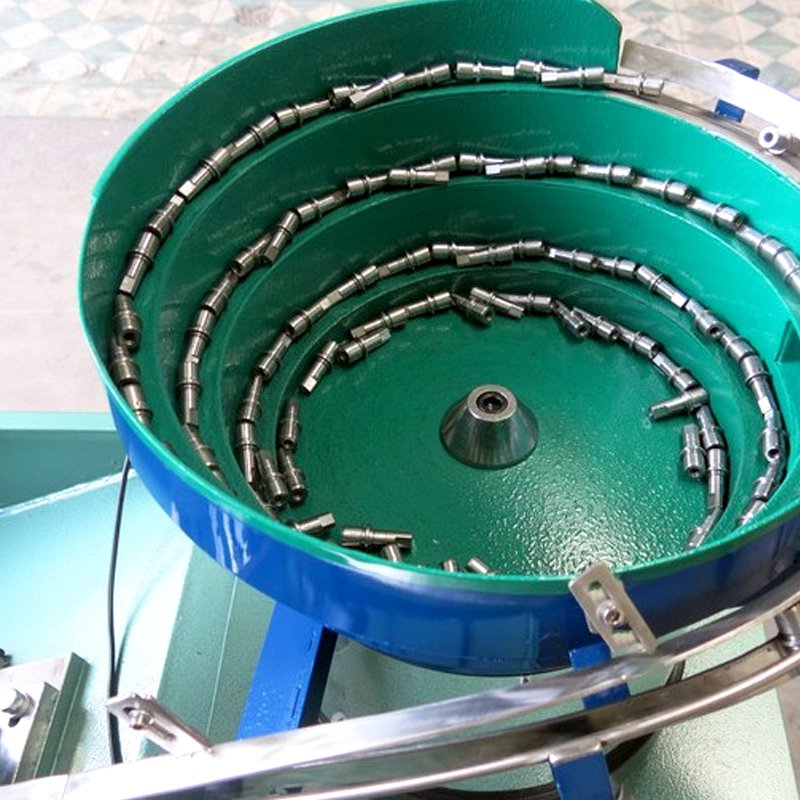

✓ Automatic feeding via vibratory bowl feeder reduces labor costs;
✓ Single-spindle fully automatic tapping improves production efficiency;
✓ Dual servo motor feed ensures precise and stable control;
✓ Touchscreen HMI allows one-touch parameter input;
✓ Well-designed electrical control system ensures stable and durable operation;
Automatic Drilling and Tapping Machine Details
Machine Working Video | Automatic Nut Tapping Machine for Precision Threading
Operation Steps
1. The operator loads 1,000–2,500 workpieces into the vibratory bowl feeder.
2. The single-spindle tapping machine automatically performs the tapping process.
3. Finished parts are automatically collected.
Technical Parameters
| Model | Nut tapping machine |
| Max Drilling Diameter | M1 – M12 |
| Total Power | 2.3 kW |
| Maximum tapping diameter | M12 |
| Tapping Spindle Speed | 1 – 2800 r.p.m |
| Certification | CE |
| Air Pressure | 0.6–0.8 MPa |
| After-Sales Service | One-Year Warranty for the Whole Machine |
| Working Accuracy | 0.1 mm |
| Control System | CNC |
| Machine Control Panel | HMI Touch Screen |
| Power Supply Voltage | 3-Phase 380V / 415V / 220V |
| Net Weight | About 450 KG |
| Machine Dimensions | 1000 x 1000 x 1950 mm |
Machine Overview
This automatic servo nut tapping machine adopts a single‑spindle servo‑driven tapping system, providing accurate speed, depth, and torque control throughout the tapping process. The machine is suitable for continuous production of various nuts, reducing labor cost while improving tapping consistency and yield rate.
Its compact structure, stable performance, and easy operation make it an ideal choice for fastener manufacturers, automotive suppliers, and electrical component factories.
Supported Nut Sizes & Materials
- Nut Size Range: M1 – M12
- Nut Types: Hex nuts, round nuts, special-shaped nuts
- Hole Types: Through holes and blind holes
- Materials:
- Stainless steel (304 / 316)
- Carbon steel
- Brass
- Copper alloys
The servo tapping system ensures smooth tapping even for small or hard materials, minimizing tap breakage and thread defects.
Single‑Spindle Servo Tapping Advantages
- Precise servo motor control for stable torque output
- High thread consistency and accuracy
- Reduced tap wear and longer tool life
- Smooth tapping for stainless steel and hard metals
- Suitable for high‑precision and mass production environments
Compared with traditional mechanical tapping machines, the servo system offers better repeatability, lower failure rates, and higher production stability.
Applications
This automatic nut tapping machine is widely used in:
- Automotive fasteners and components
- Electrical and electronic terminals
- Hardware and standard fastener manufacturing
- Industrial equipment and machinery parts
- OEM fastener production lines
It is especially suitable for manufacturers targeting European and Southeast Asian markets with strict quality requirements.
OEM & Customization Options
We provide OEM and customized nut tapping machine solutions to meet different production needs:
- Customized tapping range and spindle torque
- Servo motor brand options (Siemens, Panasonic, Delta, etc.)
- Custom fixtures and feeding systems
- Electrical standards for EU and Southeast Asia
- Multi‑language HMI interface
- Optional safety and automation modules
Our engineering team supports customers from solution design to final commissioning.
Technical Specifications
- Tapping Range: M1 – M12
- Spindle Type: Single spindle, servo‑driven
- Control System: Servo control with programmable parameters
- Operation Mode: Fully automatic
- Applicable Materials: Stainless steel, carbon steel, brass, copper
- Application: Mass production nut tapping
Specifications can be customized according to customer requirements.
Quality Control & Export Standards
Each nut tapping machine is assembled and tested under strict quality control procedures. Machines supplied to overseas markets are designed to meet industrial export standards, ensuring stable operation and long service life.
Our machines are widely exported and used by customers in Europe and Southeast Asia.

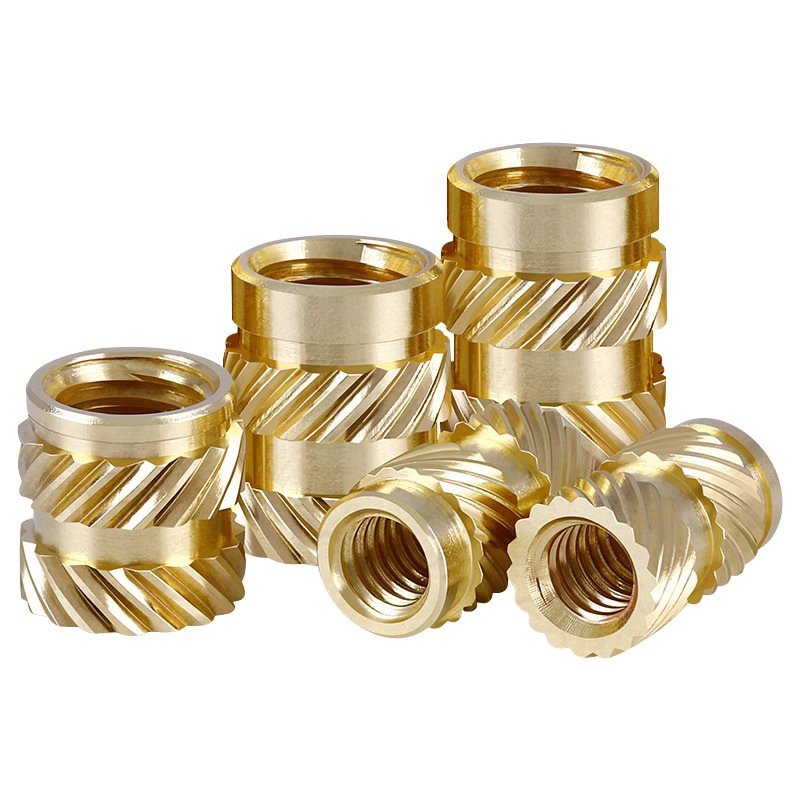

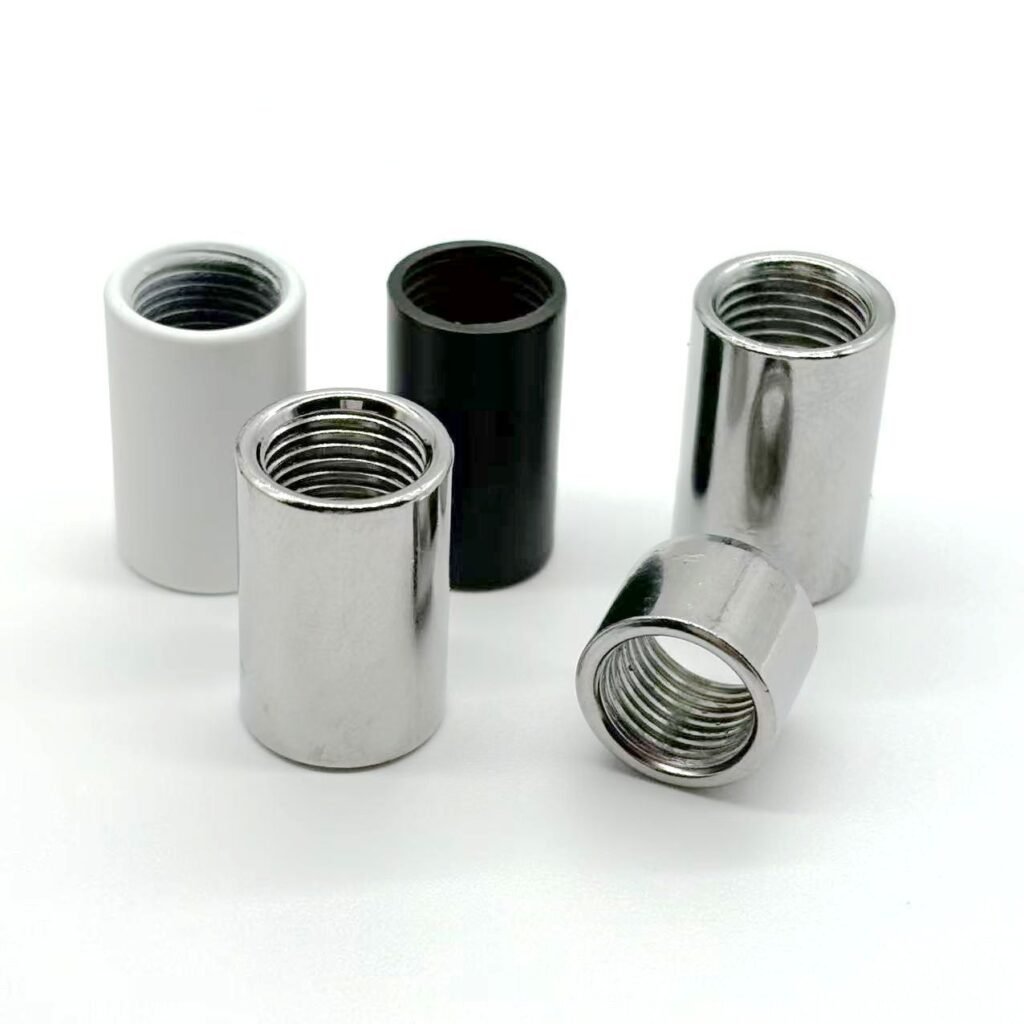

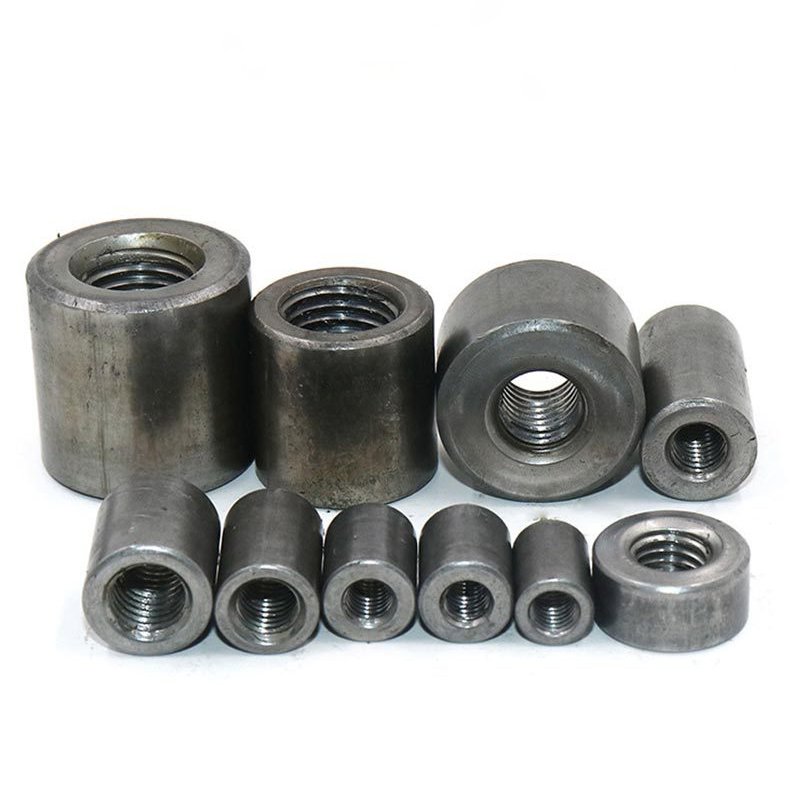

Samples Show
Frequently Asked Questions
Q: What nut sizes can this tapping machine handle?
A: This automatic servo nut tapping machine supports nut sizes from M1 to M12.
Q: Is it suitable for stainless steel nuts?
A: Yes. The servo‑controlled tapping system provides precise torque and depth control, making it ideal for stainless steel nuts.
Q: Do you support OEM or customized machines?
A: Yes. We offer OEM and customized solutions based on nut size, material, production capacity, and local standards.
Contact Us
If you are looking for a reliable OEM manufacturer of automatic servo nut tapping machines, please contact us for technical details, quotations, and customized solutions.
We are ready to support your production needs with professional automation solutions.
Customer Reviews
FAQ
Why Choose DXOVO CNC Drilling & Tapping Machine?
Modern aluminum profile production demands high accuracy, automation, and efficiency. DXOVO’s all-in-one CNC drilling and tapping system is designed for manufacturers seeking faster, smarter, and more reliable aluminum machining.
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in CNC drilling and tapping machines. All machines are designed, assembled, and tested in our own factory before delivery.
What materials can your drilling and tapping machine process?
Our machines are mainly used for aluminum profiles, Iron, Copper, Aluminium, Brass, Steel, Zinc, Platinum, heat sinks, and other non-ferrous metals. Customized models are also available for steel or copper materials upon request.
How can I get a quotation or technical proposal?
You can send us your product drawings, material type, and processing requirements. Our sales engineers will provide a detailed quotation and machining solution within 24 hours.
What is the lead time for delivery?
Usually 15–30 working days after receiving the deposit, depending on the order quantity and customization level.
How long is the warranty period?
We provide a 12-month warranty for the entire machine and lifetime technical support. During the warranty period, we offer free replacement of defective parts (except consumables).
Do you provide overseas installation or training?
Yes. We can provide online video training, operation manuals, and remote technical guidance. On-site installation and training service are also available at extra cost.
How is the machine shipped and packaged?
The machine is packed in fumigation-free wooden crates and wrapped with protective film. All shipments are insured and suitable for sea or air transportation.
