Horizontal Fully Automatic Drilling and Tapping Machine
Boost your workshop productivity with the ultimate Horizontal Fully Automatic Drilling and Tapping Machine – the perfect solution for high-volume precision machining of small to medium metal and plastic parts.

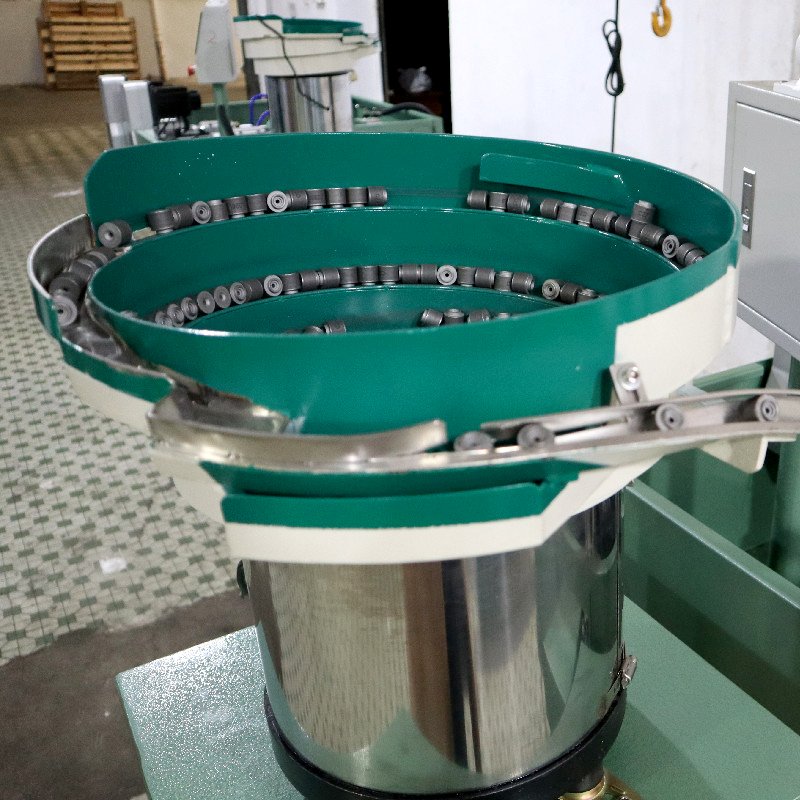

Equipped with a reliable vibratory bowl feeder, this CNC drill-tap center eliminates manual loading completely. Parts are automatically oriented, separated, and fed directly into the machining zone at speeds up to 60 pieces per minute (depending on part geometry), ensuring non-stop production and consistent quality.

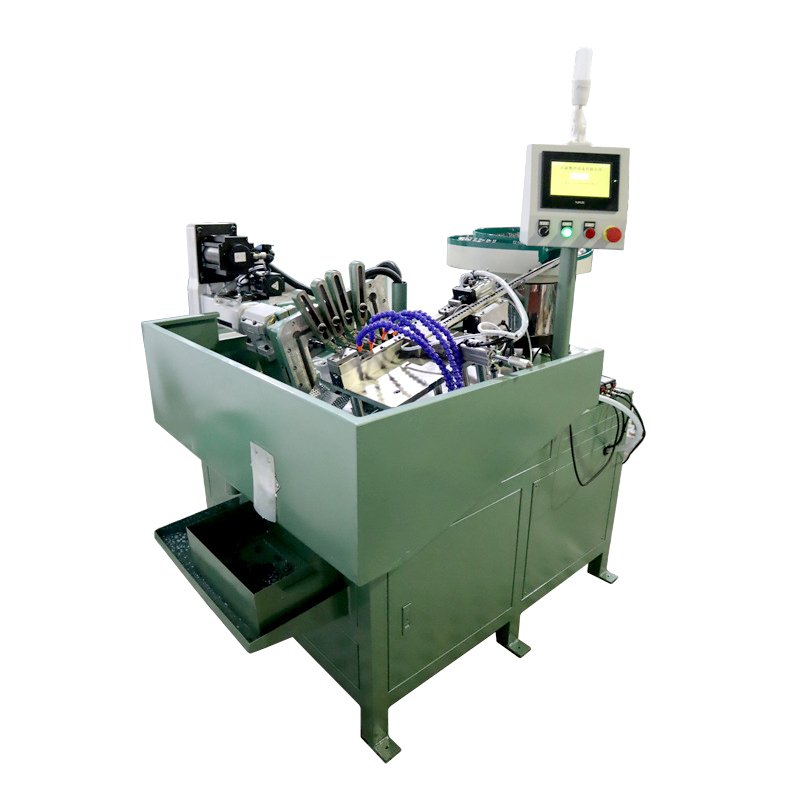

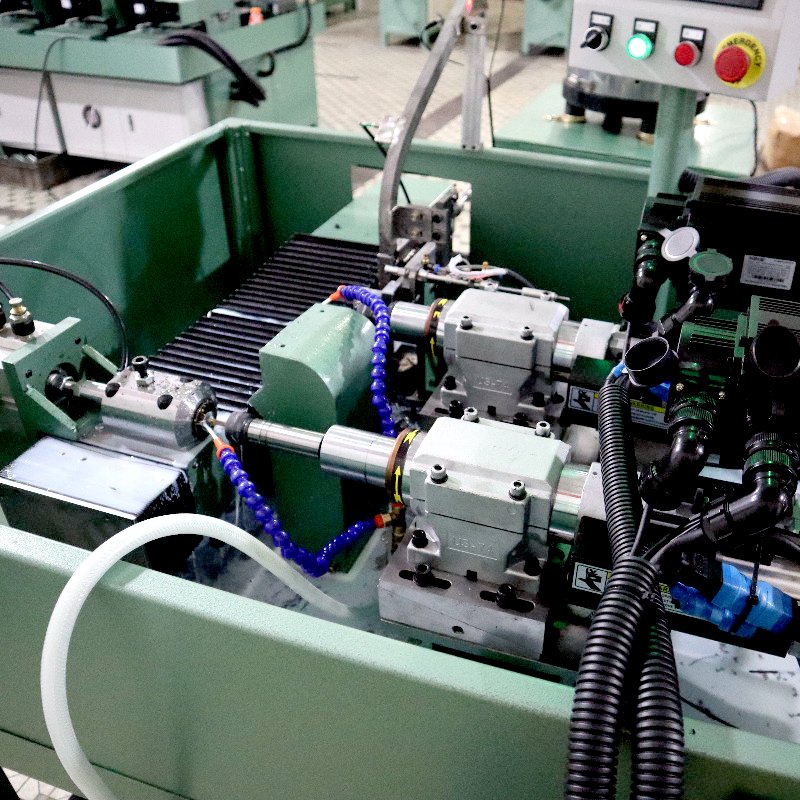

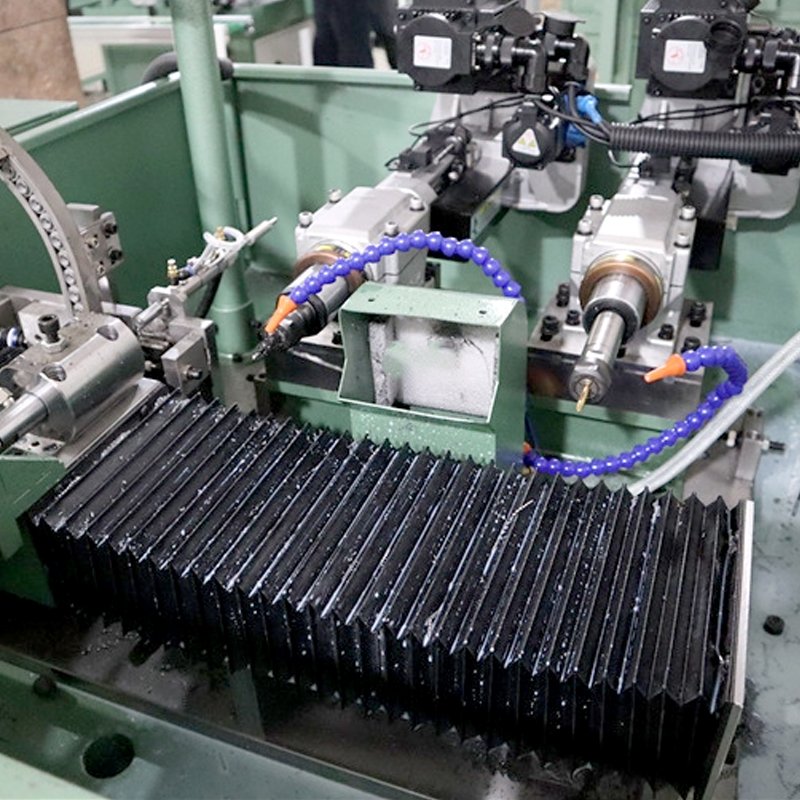

Automatic Drilling and Tapping Machine Details
Machine Working Video | This Horizontal Fully Automatic Drilling and Tapping Machine
Operation Steps
1. The worker manually places the product into the Bowl feeder.
2. Press the switch, and the machine’s horizontal spindles automatically, drill, and tap.
3. Automatic part collection.
Technical Parameters
| Model | Horizontal automatic drilling and tapping machine |
| Max Drilling Diameter | M2 – M8 |
| Maximum spindle travel | 70 mm |
| Configuration | Vertical |
| Main Motor Power | 5.6 kW |
| Spindle Tapper | JT6 |
| Spindle rotation speed | 100 – 3000RPM |
| Worktable Size | About 1000*1000mm |
| Total Height | 1680 mm |
| Number of Drilling Spindles | 1 |
| Number of Tapping Spindles | 1 |
| Product Type | Drilling and Tapping Machine |
| Level of Automation | Fully Automatic with Bowl feeder |
| Main Tilt Angle | 1 degree |
| Thread Pitch Range for Rolled Screws | 1.25 mm |
| After-Sales Service | One-Year Warranty for the Whole Machine |
| Working Accuracy | 0.1mm |
| Control System | CNC |
| Machine Control Panel | HMI Touch Screen |
| Power Supply Voltage | 3-Phase 380V / 220V |
| Net Weight | About 570 KG |
| Machine Dimensions | 1850 x 1200 x 1680 mm |
Why Choose This Horizontal Fully Automatic Drilling and Tapping Machine?
100% Hands-Free Operation – Vibratory bowl + linear track + escapement mechanism delivers perfectly positioned parts every cycle
High-Speed Precision – Servo-driven horizontal spindle, up to 6000 RPM, BT30/BT40 tool holder, ±0.01 mm repeatability
Drill & Tap in One Setup – Simultaneous drilling, rigid tapping, and optional thread milling without changing workstations
Multi-Axis Flexibility – 3-axis or 4-axis configuration available for complex hole patterns and angled features
Compact Footprint – Ideal for factories needing maximum output in limited floor space
Key Specifications
Max workpiece size: Ø120 mm × 150 mm (custom bowls available)
Spindle power: 5.5–7.5 kW
Rapid traverse: 48 m/min
Tool magazine: 12–16 stations servo tool changer
Control system: Fanuc / Siemens / Syntec (English interface)
Power requirement: 380V 3-phase 50/60 Hz
Perfect for Industries
Automotive components (brackets, fittings, sensor housings)
Electronics & 3C (phone cases, connectors, heat sinks)
Lock hardware & plumbing fittings
Medical device parts
General precision metalworking

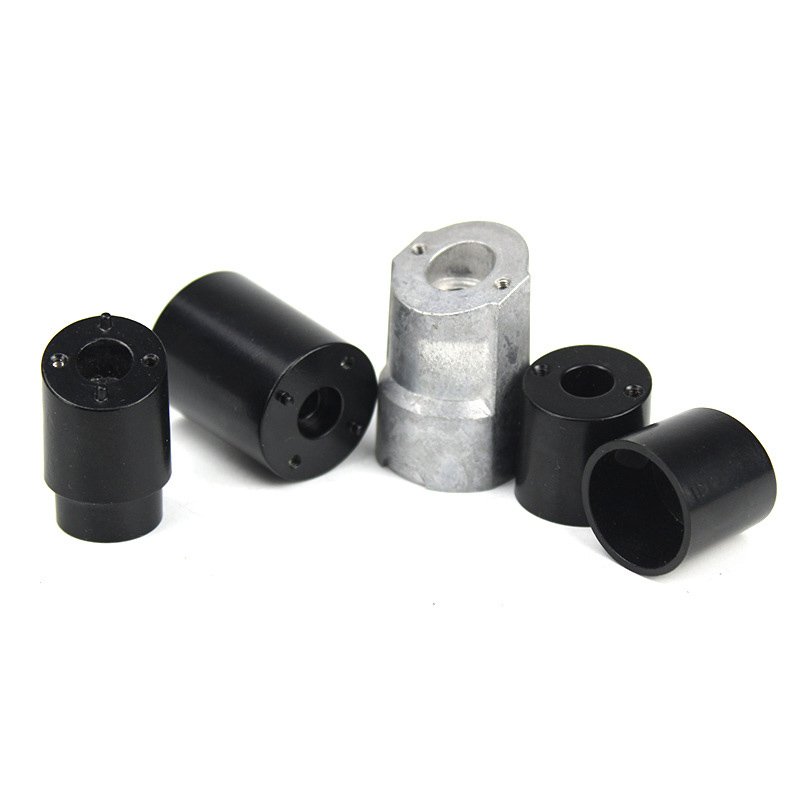

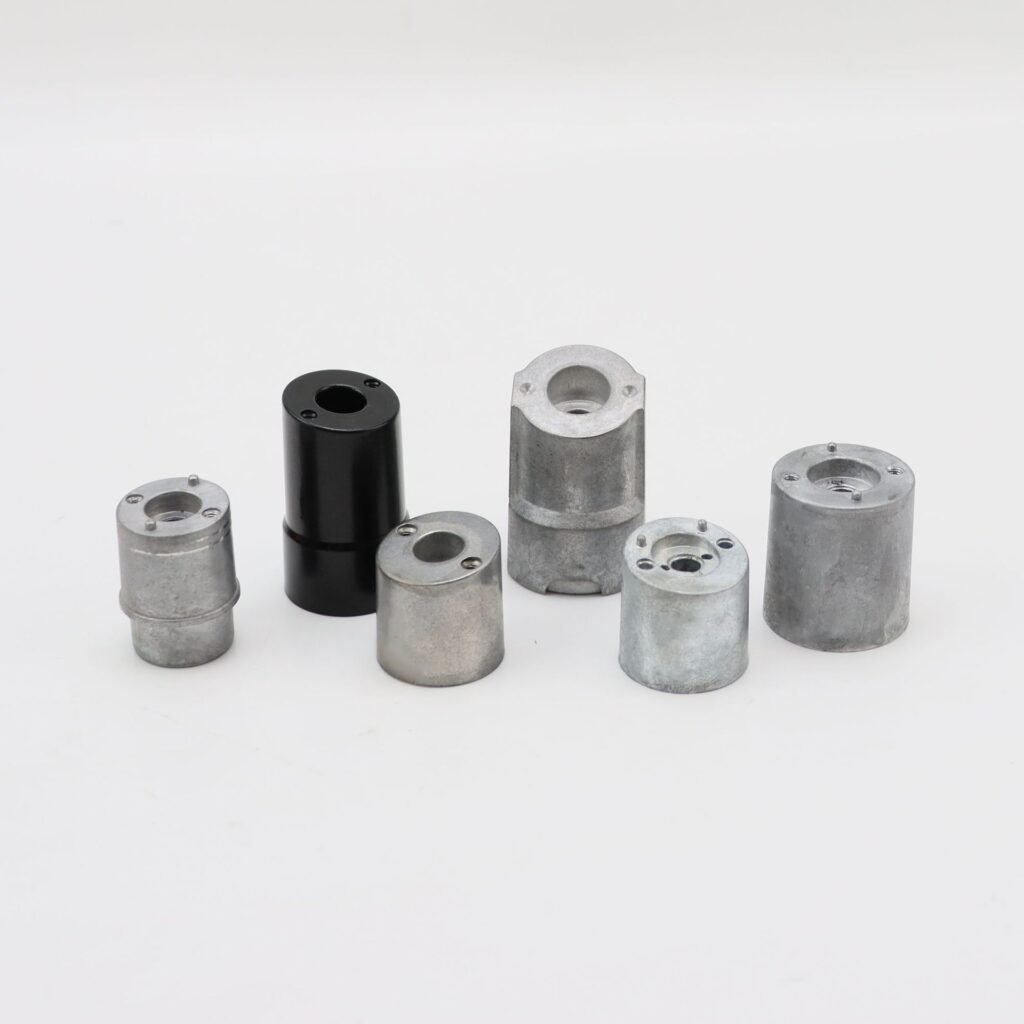

Samples Show
Say goodbye to labor-intensive loading and inconsistent cycle times. This horizontal fully automatic drilling and tapping machine delivers repeatable accuracy, minimal downtime, and immediate ROI through labor savings and 24/7 operation capability.
Contact us today for a live demo or custom vibratory bowl design tailored to your specific parts. Worldwide shipping and 12-month warranty included.
Tags: horizontal CNC drilling and tapping machine, fully automatic drill tap center, vibratory bowl feeder machine, auto feeding drilling machine, CNC tapping center with auto loader, precision machining automation
Customer Reviews
FAQ
Why Choose DXOVO CNC Drilling & Tapping Machine?
Modern aluminum profile production demands high accuracy, automation, and efficiency. DXOVO’s all-in-one CNC drilling and tapping system is designed for manufacturers seeking faster, smarter, and more reliable aluminum machining.
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in CNC drilling and tapping machines. All machines are designed, assembled, and tested in our own factory before delivery.
What materials can your drilling and tapping machine process?
Our machines are mainly used for aluminum profiles, Iron, Copper, Aluminium, Brass, Steel, Zinc, Platinum, heat sinks, and other non-ferrous metals. Customized models are also available for steel or copper materials upon request.
How can I get a quotation or technical proposal?
You can send us your product drawings, material type, and processing requirements. Our sales engineers will provide a detailed quotation and machining solution within 24 hours.
What is the lead time for delivery?
Usually 15–30 working days after receiving the deposit, depending on the order quantity and customization level.
How long is the warranty period?
We provide a 12-month warranty for the entire machine and lifetime technical support. During the warranty period, we offer free replacement of defective parts (except consumables).
Do you provide overseas installation or training?
Yes. We can provide online video training, operation manuals, and remote technical guidance. On-site installation and training service are also available at extra cost.
How is the machine shipped and packaged?
The machine is packed in fumigation-free wooden crates and wrapped with protective film. All shipments are insured and suitable for sea or air transportation.
Factory Showcase
DXOVO CNC Drilling & Tapping Machines – Real Workshop View
