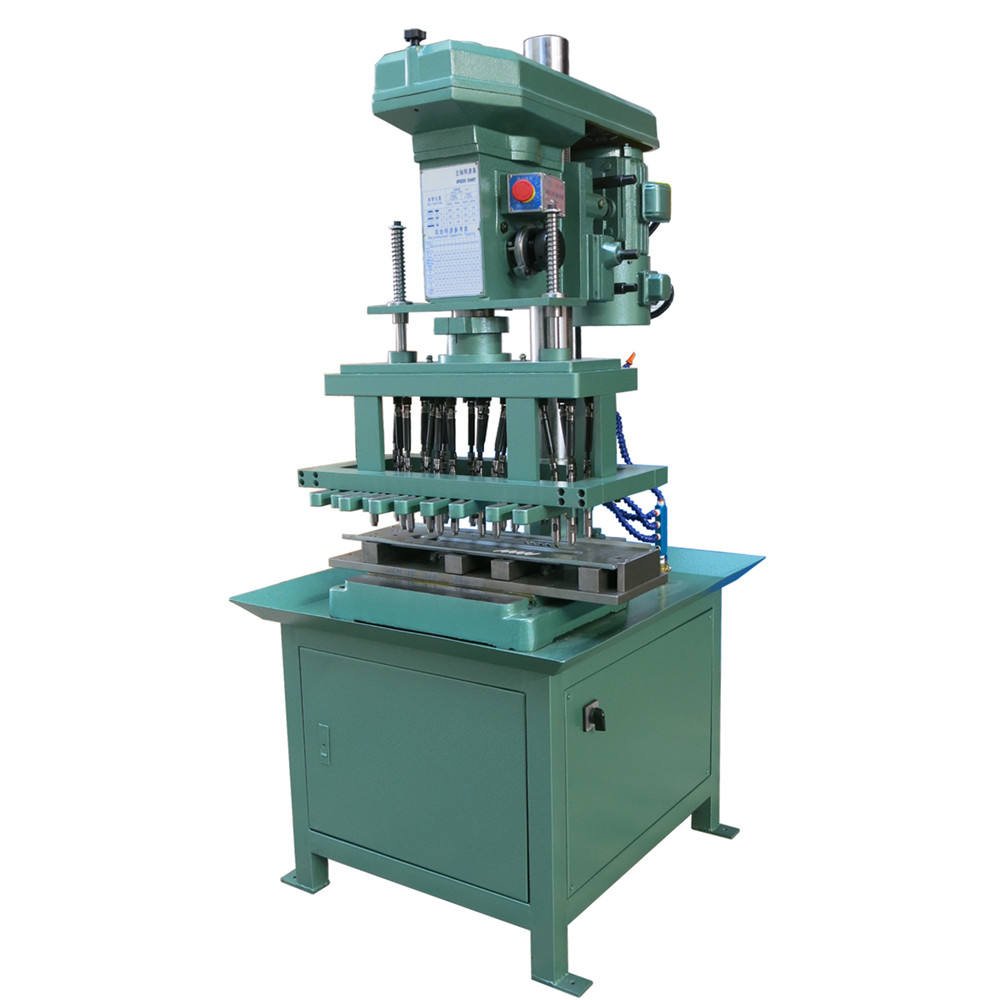

High-Speed Gear-Driven Automatic Tapping System DX-6532
The High-Speed Gear-Driven Auto Tapping System is built for manufacturers who operate at the edge of productivity and precision. By combining a rigid gear transmission with an intelligent auto pitch control structure, this advanced Auto Tapping System delivers a smooth, uninterrupted cutting motion that keeps every thread uniform, clean, and dimensionally accurate—even during long, high-speed production runs.
Unlike conventional tapping solutions that suffer from power loss, vibration, or inconsistent torque, this system transfers mechanical force directly through the gear set. The result is faster response, stronger cutting stability, and dramatically reduced tool failure. For users, this means higher output per shift, fewer machine stops, and significantly lower maintenance costs.
Machine Advantages
✓ Streamlined linear design for effortless installation and hassle-free maintenance.
✓ Dual-level adjustment with automatic tap protection, maximizing tool life and thread quality.
✓ Flexible configuration: single or multi-spindle options, with easily interchangeable gears for versatile gear ranges.
✓ Premium-grade components and precision parts ensure long-lasting durability and superior wear resistance.
✓ Expert online technical guidance and world-class after-sales support to keep your production running smoothly.
Automatic Drilling and Tapping Machine Details
Machine Working Video | High-Speed Gear-Driven Automatic Tapping Machine
Operation Steps
1. The worker manually places the product into the fixture.
2. Press the switch, and the machine’s multiple spindles automatically chamfer, drill, and tap.
3. The worker manually removes the finished parts.
Technical Parameters
| Model | DX-6532 Automatic tapping machine |
| Max Drilling Diameter | M5 – M32 |
| Power Type | Gear Pitch Drive |
| Configuration | Vertical |
| Main Motor Power | 2.5 kW |
| Maximum tapping diameter | M32 |
| Tapping Spindle Speed | 50hz: 280rpm / 150rpm / 80rpm
60hz: 320rpm / 180rpm / 120rpm |
| Worktable Size | About 590*420mm |
| Gear pitch (mm) | 0.8, 1.0, 1.25, 1.75, 2.0, 2.5, 3.2, 3.5 |
| Gear pitch (inch) | 8, 9, 10, 11, 12, 14, 16, 19 |
| Multi-spindle capability (optional) | M8 * 16, M10 * 10, M12 * 7, M14 * 6, M16 * 4, M18 * 3, M20 * 3, M32 * 1 |
| Number of Tapping Spindles | 1-16 pcs ( option ) |
| Product Type | Gear-Type Automatic Tapping Machine |
| Level of Automation | Fully Automatic Tapping |
| Main Tilt Angle | 1 degree |
| Spindle stroke | 65 mm |
| After-Sales Service | One-Year Warranty for the Whole Machine |
| Working Accuracy | 0.1mm |
| Control System | CNC |
| Machine Control Panel | None |
| Power Supply Voltage | 3-Phase 380V / 220V /410V / 440v |
| Net Weight | About 450 KG |
| Machine Dimensions | 1500 x 1500 x 2160 mm |
Why DXOVO Leads the Global Auto Tapping System Market
DXOVO has earned its worldwide reputation by focusing on one core principle: machines must perform better in real factories, not just in specifications. Today, DXOVO Auto Tapping Systems are operating successfully across major manufacturing regions in Asia, Europe, North America, and the Middle East, serving both high-volume production lines and precision component workshops.
Each system is assembled with strict quality control standards, ensuring long-term running stability, repeatable accuracy, and dependable mechanical life. For many international clients, DXOVO is not just a supplier—it is their long-term automation partner.
What Our Customers Say
★★★★★ — Poland, Industrial Hardware Manufacturer
“The machine runs faster than our old system but with better thread consistency. Tool life improved noticeably.”
★★★★★ — Brazil, Automotive Component Plant
“We operate two shifts nonstop. The gear-driven structure stays stable without overheating or vibration.”
★★★★★ — Vietnam, Electronics Accessories Factory
“Thread depth control is extremely accurate. Even on thin aluminum parts, quality is perfectly consistent.”
Where the System Is Used
This Auto Tapping System is widely applied in:
Automotive and motorcycle components
LED lighting and aluminum heat sinks
Electrical enclosures and terminal blocks
Precision fasteners and connectors
Home appliance metal frames
Construction hardware and pipe accessories
Machinery and equipment parts
Supported Processing Materials
The system performs reliably on:
304 / 316 stainless steel
Carbon steel and alloy steel
Aluminum profiles and die-cast aluminum
Brass, copper, and bronze
Galvanized steel and iron
Zinc alloy components

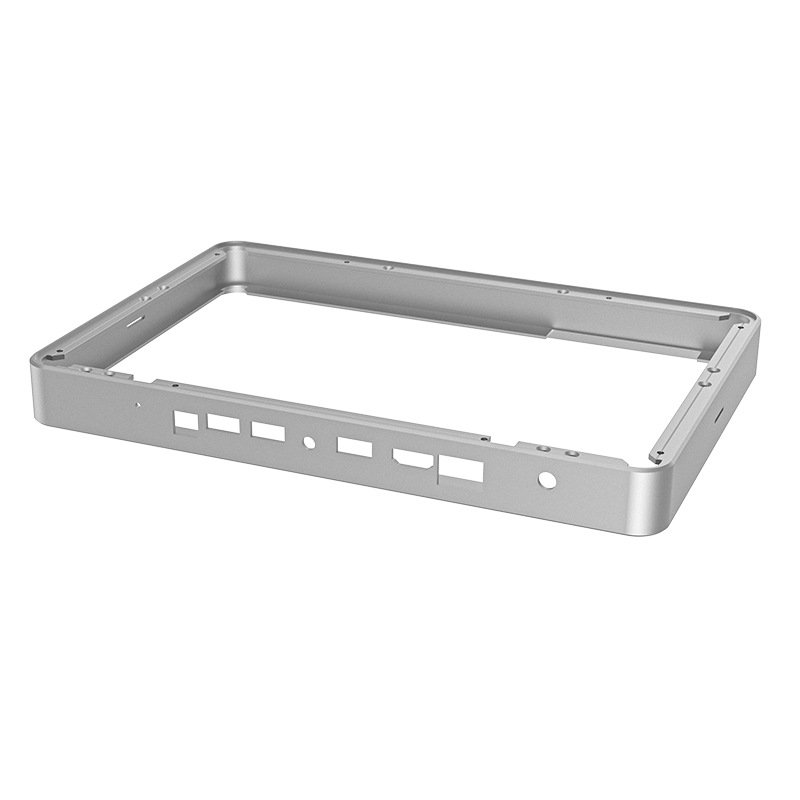

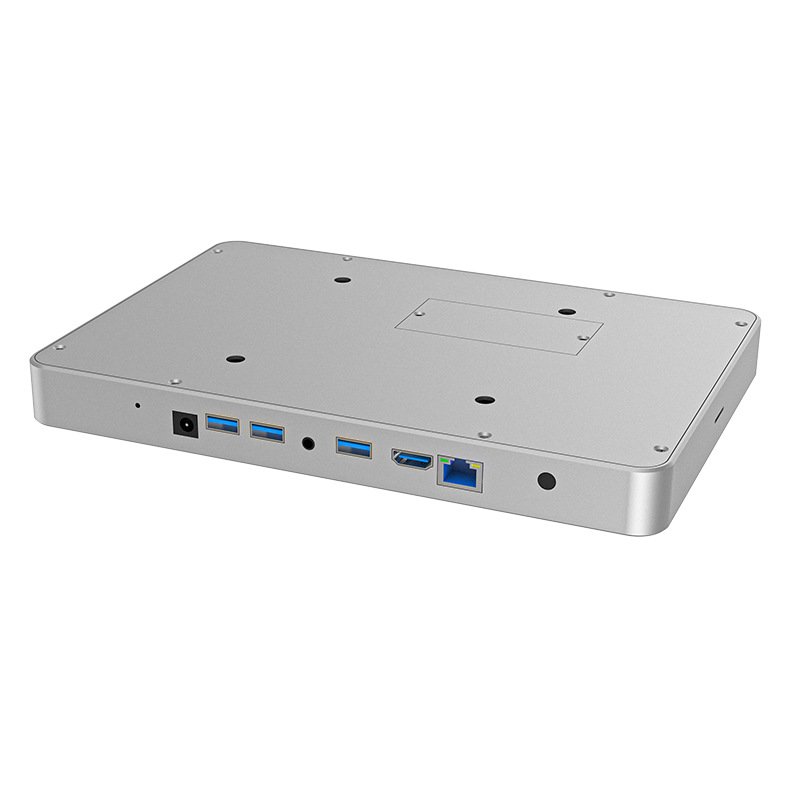

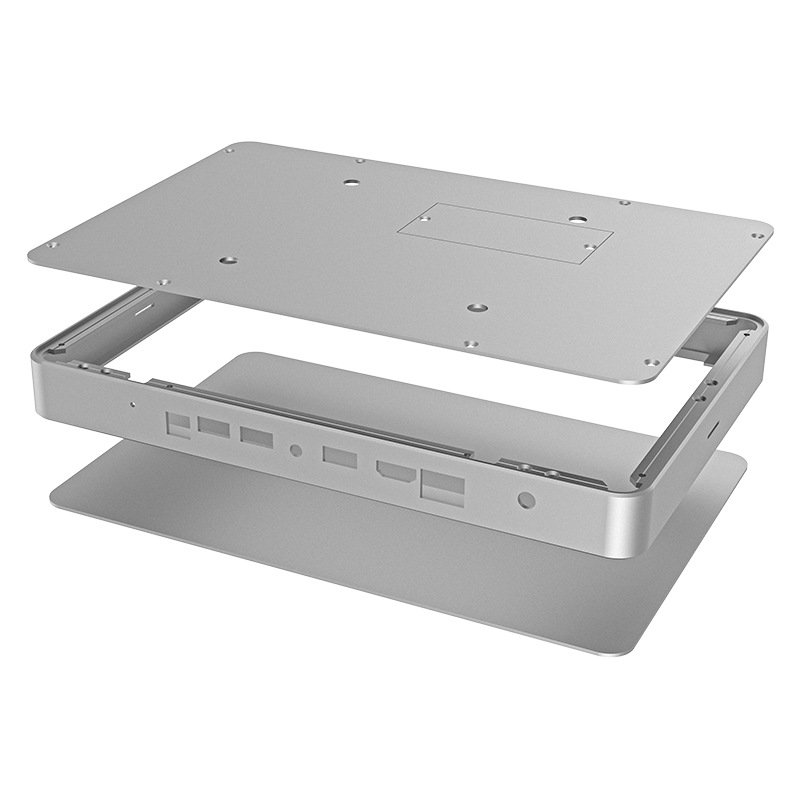

Samples Show
The Real Value for Your Factory
The High-Speed Gear-Driven Auto Tapping System is not simply designed to tap faster—it is engineered to stabilize production quality, lower per-part cost, and future-proof your manufacturing line. With DXOVO as your technology partner, you gain a tapping solution that delivers measurable improvements in efficiency, consistency, and long-term operating reliability.
Customer Reviews
FAQ
Why Choose DXOVO CNC Drilling & Tapping Machine?
Modern aluminum profile production demands high accuracy, automation, and efficiency. DXOVO’s all-in-one CNC drilling and tapping system is designed for manufacturers seeking faster, smarter, and more reliable aluminum machining.
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in CNC drilling and tapping machines. All machines are designed, assembled, and tested in our own factory before delivery.
What materials can your drilling and tapping machine process?
Our machines are mainly used for aluminum profiles, Iron, Copper, Aluminium, Brass, Steel, Zinc, Platinum, heat sinks, and other non-ferrous metals. Customized models are also available for steel or copper materials upon request.
How can I get a quotation or technical proposal?
You can send us your product drawings, material type, and processing requirements. Our sales engineers will provide a detailed quotation and machining solution within 24 hours.
What is the lead time for delivery?
Usually 15–30 working days after receiving the deposit, depending on the order quantity and customization level.
How long is the warranty period?
We provide a 12-month warranty for the entire machine and lifetime technical support. During the warranty period, we offer free replacement of defective parts (except consumables).
Do you provide overseas installation or training?
Yes. We can provide online video training, operation manuals, and remote technical guidance. On-site installation and training service are also available at extra cost.
How is the machine shipped and packaged?
The machine is packed in fumigation-free wooden crates and wrapped with protective film. All shipments are insured and suitable for sea or air transportation.
Factory Showcase
DXOVO CNC Drilling & Tapping Machines – Real Workshop View
