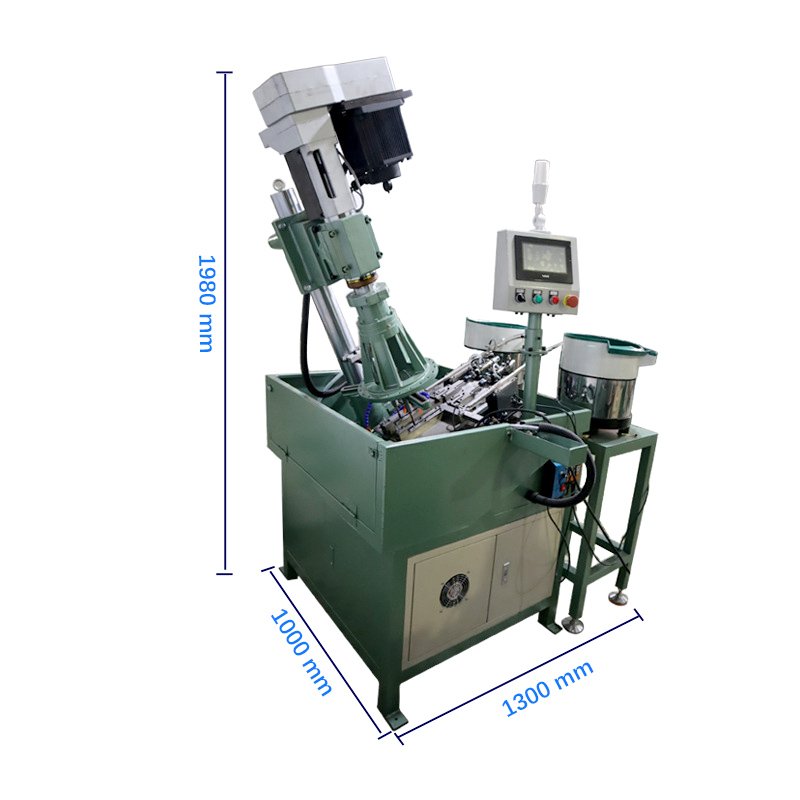

Fully Automatic Feeding Multi-Spindle Servo Tapping Machine

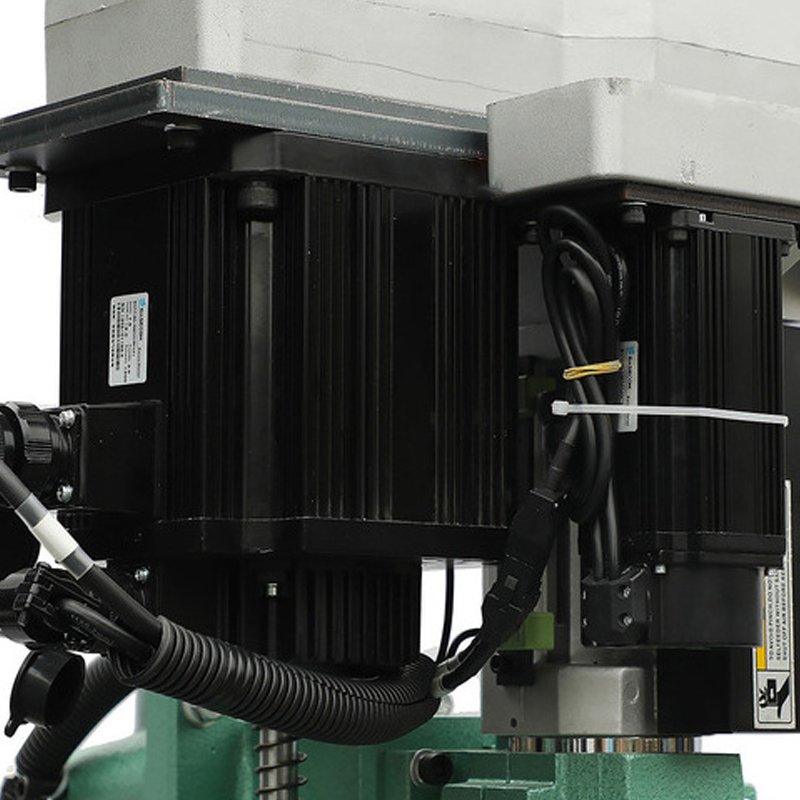

The DXOVO Fully Automatic Feeding Multi-Spindle Servo Tapping Machine is designed to meet the demands of modern manufacturing, offering high-speed precision tapping for metal parts with unmatched efficiency. Its automatic multi-spindle tapping machine system allows multiple threads to be processed simultaneously, significantly reducing production time and labor costs. Equipped with advanced servo motor control, it ensures consistent torque, precise depth, and reliable thread quality across aluminum, stainless steel, and other metal components.
Automatic Drilling and Tapping Machine Details
Machine Working Video | Fully Automatic Feeding Multi-Spindle Servo Tapping Machine for Metal Parts
Operation Steps
1. Workers pour 500–1500 pieces of products into the vibratory bowl.

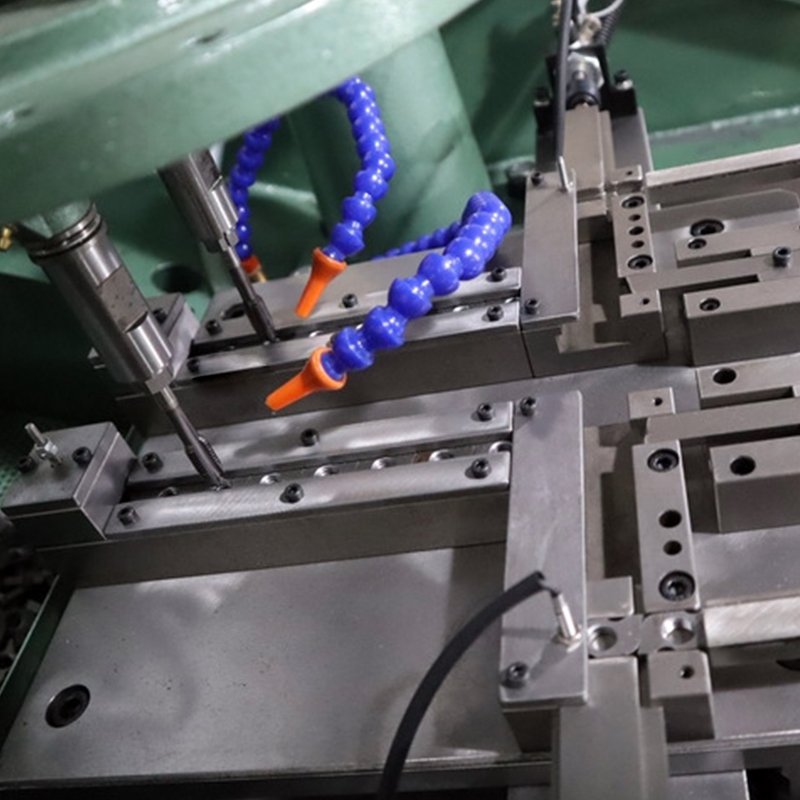

2. The machine automatically performs tapping on multiple spindles simultaneously.
3. Finished parts are automatically discharged.
Technical Parameters
| Model | DX-7016 Automatic Tapping Machine |
| Max Drilling Diameter | M2-M14 |
| Host up down moving range | 0-420mm |
| Distance from Spindle Center to Column | 260mm |
| Distance from Spindle Nose to Working Table | 350mm |
| Spindle Tapper | JT6 |
| Spindle rotation speed | 0-1500RPM |
| Worktable Size | 1000*1000mm |
| Total Height | 1080mm / 1820mm |
| Feed Motor Power | 0.75kw |
| Spindle Motor Power | 1.8kw |
| Product Type | Tapping Machine |
| Level of Automation | Fully Automatic with Bowl feeder |
| Main Tilt Angle | 1 degree |
| Thread Pitch Range for Rolled Screws | 1.5mm |
| After-Sales Service | One-Year Warranty for the Whole Machine |
| Working Accuracy | 0.1mm |
| Control System | CNC |
| Machine Control Panel | HMI Touch Screen |
| Power Supply Voltage | 3-Phase 380V / 220V |
| Net Weight | About 235 KG |
| Machine Dimensions | 1000 x 1000 x 1900 mm |

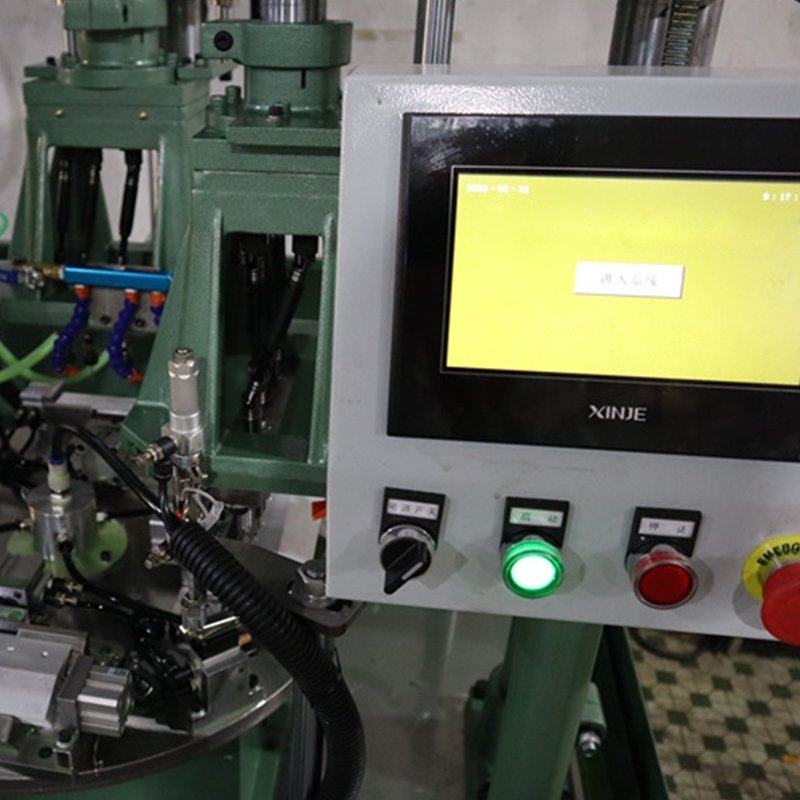

With its CNC automatic tapping and feeding system, operators benefit from a simple, user-friendly interface that enables quick setup, real-time monitoring, and easy adjustment for different production requirements. This intelligent design not only improves workflow but also minimizes errors, ensuring every batch meets strict quality standards.
Ideal for electronics enclosures, automotive hardware, and furniture components, DXOVO’s industrial tapping machine provides long-term durability and low maintenance, making it a smart investment for manufacturers seeking to optimize production. Upgrade to DXOVO and experience faster, safer, and more consistent tapping performance with a machine engineered for high-efficiency mass production.
Applications
Our drilling & tapping machines are widely used for:
Automatic Thread Tapping for Various Metal Pipe Clamps, Saddle Clamps, and Saddle-Shaped Clips.
Aluminum window & door frame production.
LED heat sink profiles.
Industrial aluminum structures.
Die-cast aluminum shell components.
Applicable Materials:
Stainless steel, cast iron, zinc-aluminum-titanium alloys, aluminum profiles, powder metallurgy, plastics, and more.

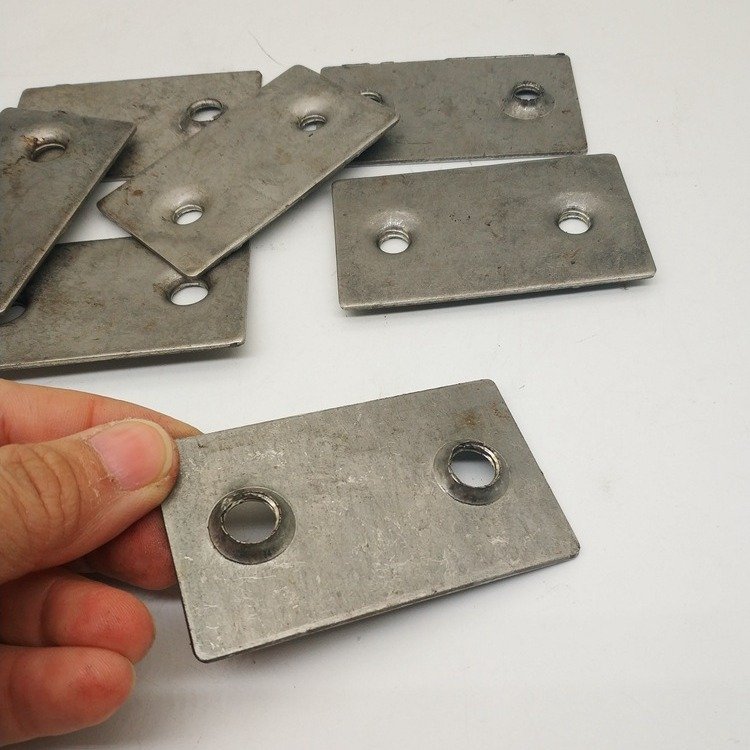

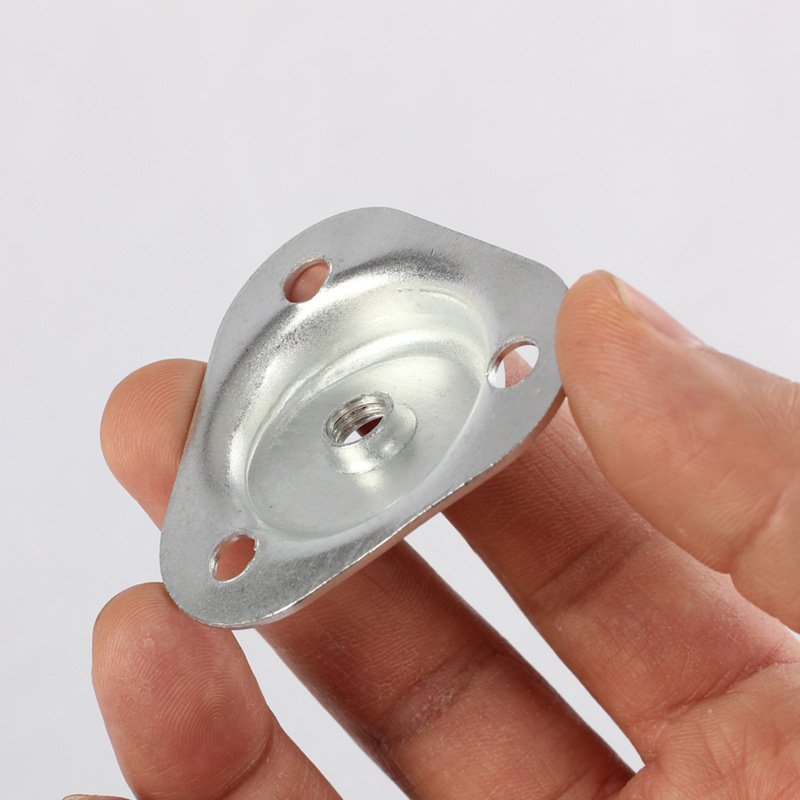

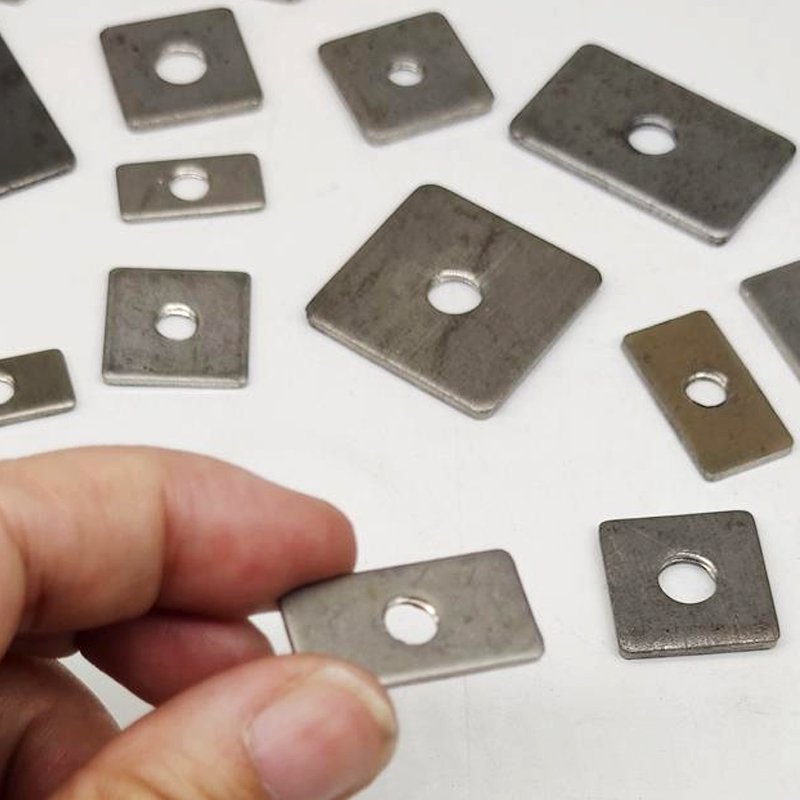

Samples Show
Customer Reviews
FAQ
Why Choose DXOVO CNC Drilling & Tapping Machine?
Modern aluminum profile production demands high accuracy, automation, and efficiency. DXOVO’s all-in-one CNC drilling and tapping system is designed for manufacturers seeking faster, smarter, and more reliable aluminum machining.
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in CNC drilling and tapping machines. All machines are designed, assembled, and tested in our own factory before delivery.
What materials can your drilling and tapping machine process?
Our machines are mainly used for aluminum profiles, Iron, Copper, Aluminium, Brass, Steel, Zinc, Platinum, heat sinks, and other non-ferrous metals. Customized models are also available for steel or copper materials upon request.
How can I get a quotation or technical proposal?
You can send us your product drawings, material type, and processing requirements. Our sales engineers will provide a detailed quotation and machining solution within 24 hours.
What is the lead time for delivery?
Usually 15–30 working days after receiving the deposit, depending on the order quantity and customization level.
How long is the warranty period?
We provide a 12-month warranty for the entire machine and lifetime technical support. During the warranty period, we offer free replacement of defective parts (except consumables).
Do you provide overseas installation or training?
Yes. We can provide online video training, operation manuals, and remote technical guidance. On-site installation and training service are also available at extra cost.
How is the machine shipped and packaged?
The machine is packed in fumigation-free wooden crates and wrapped with protective film. All shipments are insured and suitable for sea or air transportation.
Factory Showcase
DXOVO CNC Drilling & Tapping Machines – Real Workshop View
